12v 60ah Lithium Iron Phosphate Battery For Motorhome Solar System

Name: 12v 60ah Lithium Iron Phosphate Battery For Motorhome Solar System
Brand: Coslight
Price: 143.00 USD

China 12v 60ah Lithium Iron Phosphate Battery For Motorhome Solar System wholesale

Brand Name : Coslight

Certification : UL

Model Number : 12V-60Ah

Place of Origin : Guangdong, China

Packaging Details : wooden packing

Supply Ability : 500 Unit/Units per Month

MOQ : 500 units

Price : $143.00 - $148.00/units

Warranty : 3months-1year

Anode Material : Other

Chargeable : Yes

Application : Toys, Power Tools, Consumer Electronics, Electric Bicycles/Scooters, Solar Energy Storage Systems

Battery Size : 12V60Ah

Weight : 7 Kg

The charging ratio : 60 A

The discharge rate : 60 A

Energy : 768 Wh

Cycle Life : 2000+cycles @ 1C 80% DOD

Self Discharge : <3% per Month

Monthly Self Discharge : Less than 3.5%

Charge Temperature : 0~45 ℃

Discharge Temperature : -20℃ to 60 ℃

Storage Temperature : -20℃ to 45 ℃

Height : 205± 2 mm

Case Material : ABS

Enclosure Protection : IP65

Port : sz/hk

Contact Now

Product Specification

ELECTRICAL SPECIFICATIONS
Nominal Voltage	12.8 V
Nominal Capacity @ 0.2C	60 Ah
Energy	768 Wh
Resistance	150mΩ
Cycle Life	2000+cycles @ 1C 80% DOD
E⃞iciency	99%
Self Discharge	<3% per Month
Maximum Modules in Series/Parallels	4S or 4P

CHARGE & DISCHARGE SPECIFICATIONS
Monthly Self Discharge	Less than 2%
E⃞iciency of Charge	100% @ 0.5 C
E⃞iciency of Discharge	96 - 99% @ 1 C
Charge Voltage	14.6 ± 0.2 V
Charge Model CC & CV	0.2C to 14.6 V , then 14.6V, charge current to 0.02C
Standard Charge Current	12 A
Max. Charge Current	60 A
Max. Continuous Discharge Current	60 A
Peak Discharge Current	120 A (3S)
BMS Discharge Cut-o⃞ Voltage	10 V
Charge Temperature	0~45 ℃
Discharge Temperature	-20℃ to 60 ℃
Storage Temperature	-20℃ to 45 ℃

MECHANICAL SPECIFICATIONS
Length	138± 2 mm
Width	229 ± 2 mm
Height	205± 2 mm
Weight	7 Kg
Case Material	ABS
Terminal	M5
Enclosure Protection	IP65

COMPLIANCE
Certifications	UL1642 (cells) IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9

Products Description

12v 60ah Lithium Iron Phosphate Battery For Motorhome Solar System

Company Profile

Product Tags:

12v 60ah Lithium Iron Phosphate Battery

12v 60ah lithium phosphate battery

IP65 lithium phosphate battery

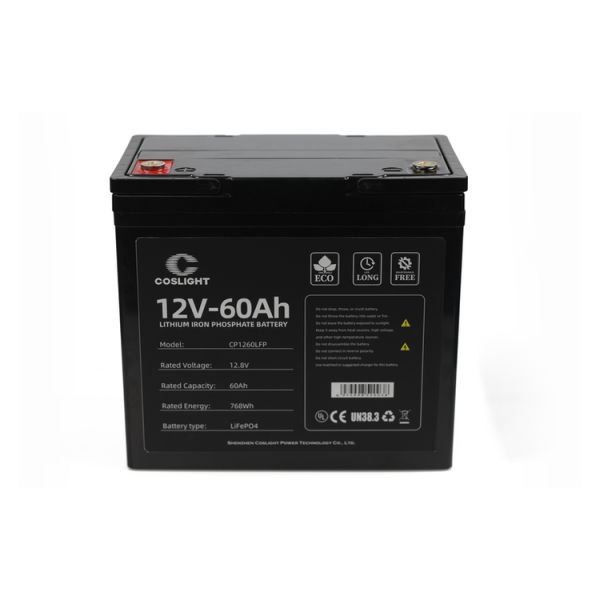

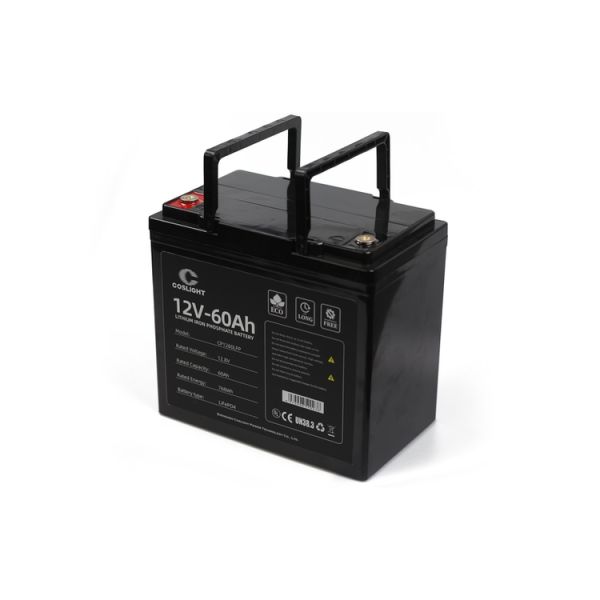

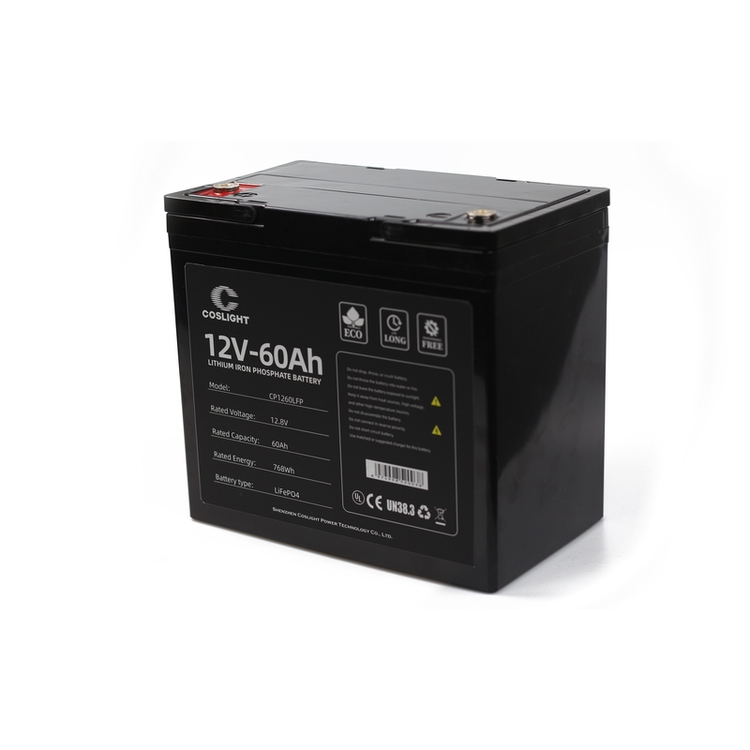

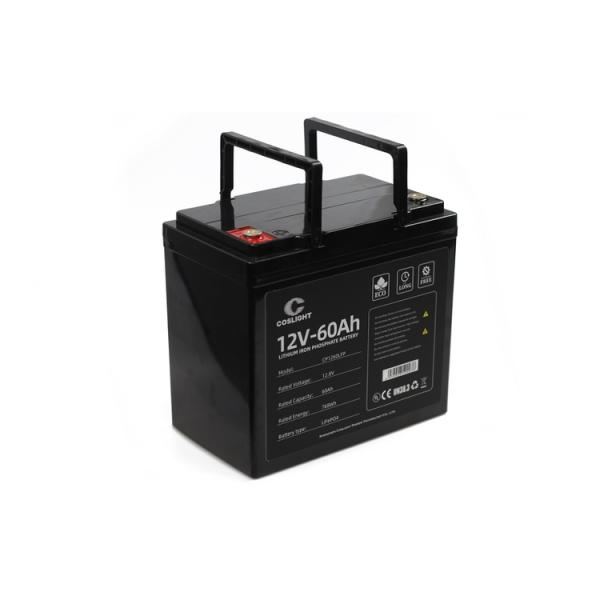

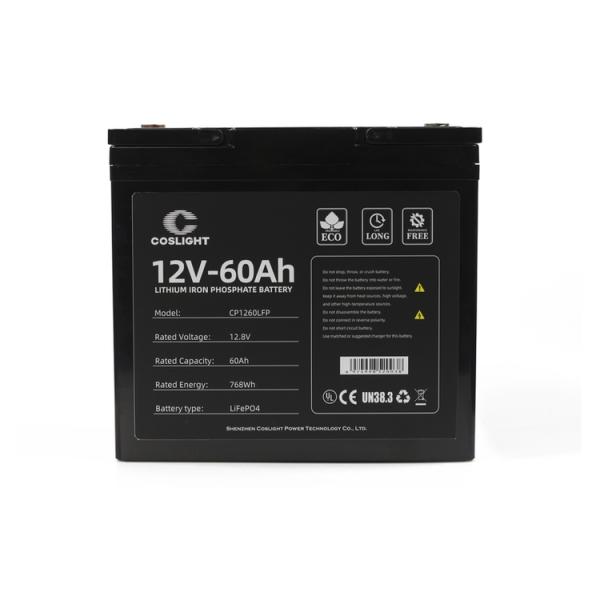

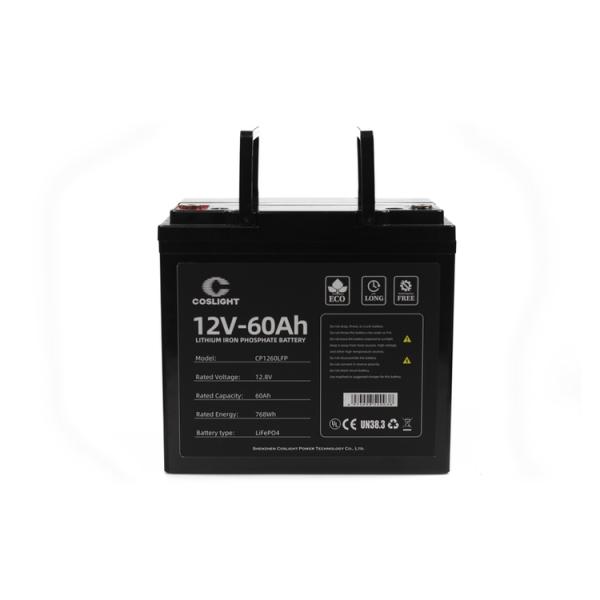

12v 60ah Lithium Iron Phosphate Battery For Motorhome Solar System Images
